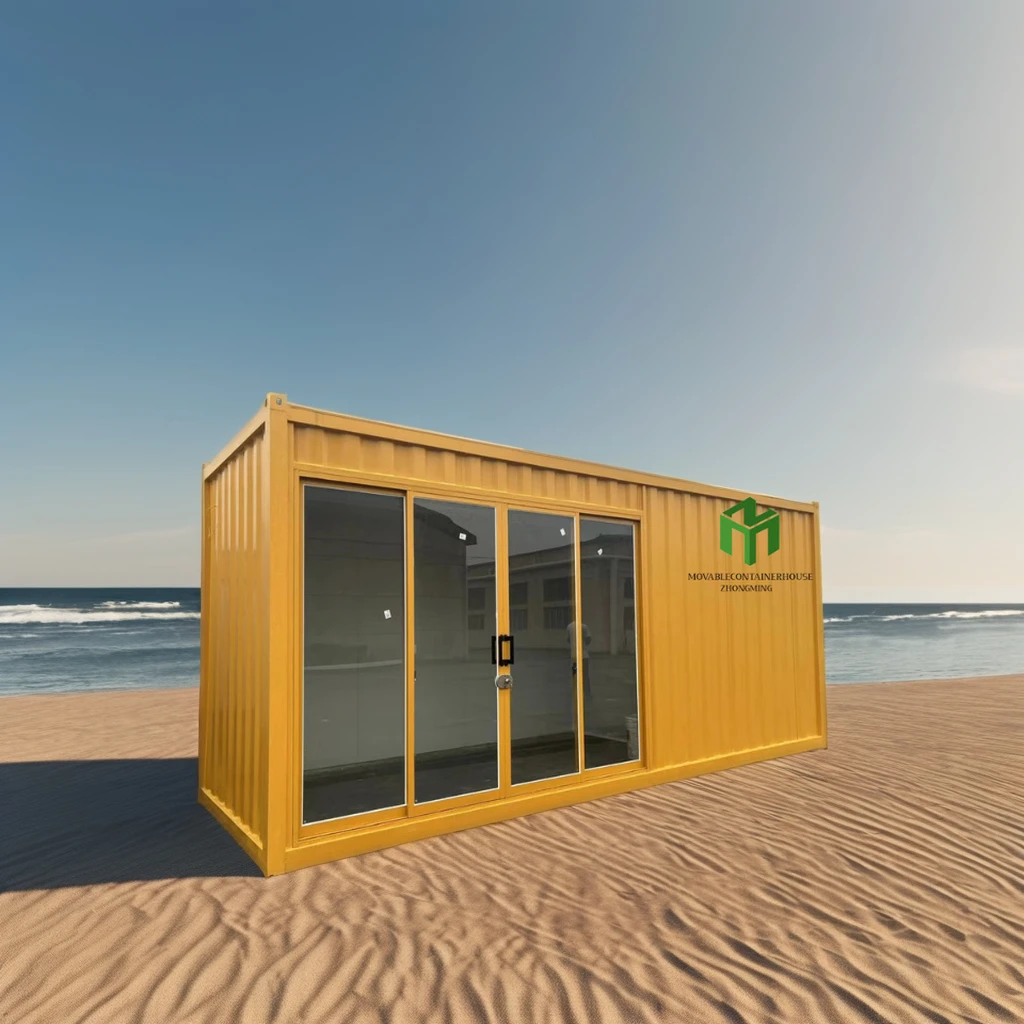

Custom 20ft and 40ft prefabricated container coffee shops use container space intelligently to quickly create a distinctive coffee business. Removable prefabricated container bar house, easy to transport, can be assembled on the ground, its personalized design can create a different atmosphere. They can both fulfil business requirements flexibly and efficiently to give hi-impact niche shops.
item |
value |
Warranty |
3 years |
After-sale Service |
Online technical support |
Application |
Courtyard |
Place of Origin |
China |
Jiangsu |
|
Brand Name |
Zhongming |
Material |
Sandwich Panel, Steel, glass |
Product Type |
Modified Shipping Container |
Design Style |
Contemporary |
Flat pack container house |
||
Size:2990*6055*2896mm |
||

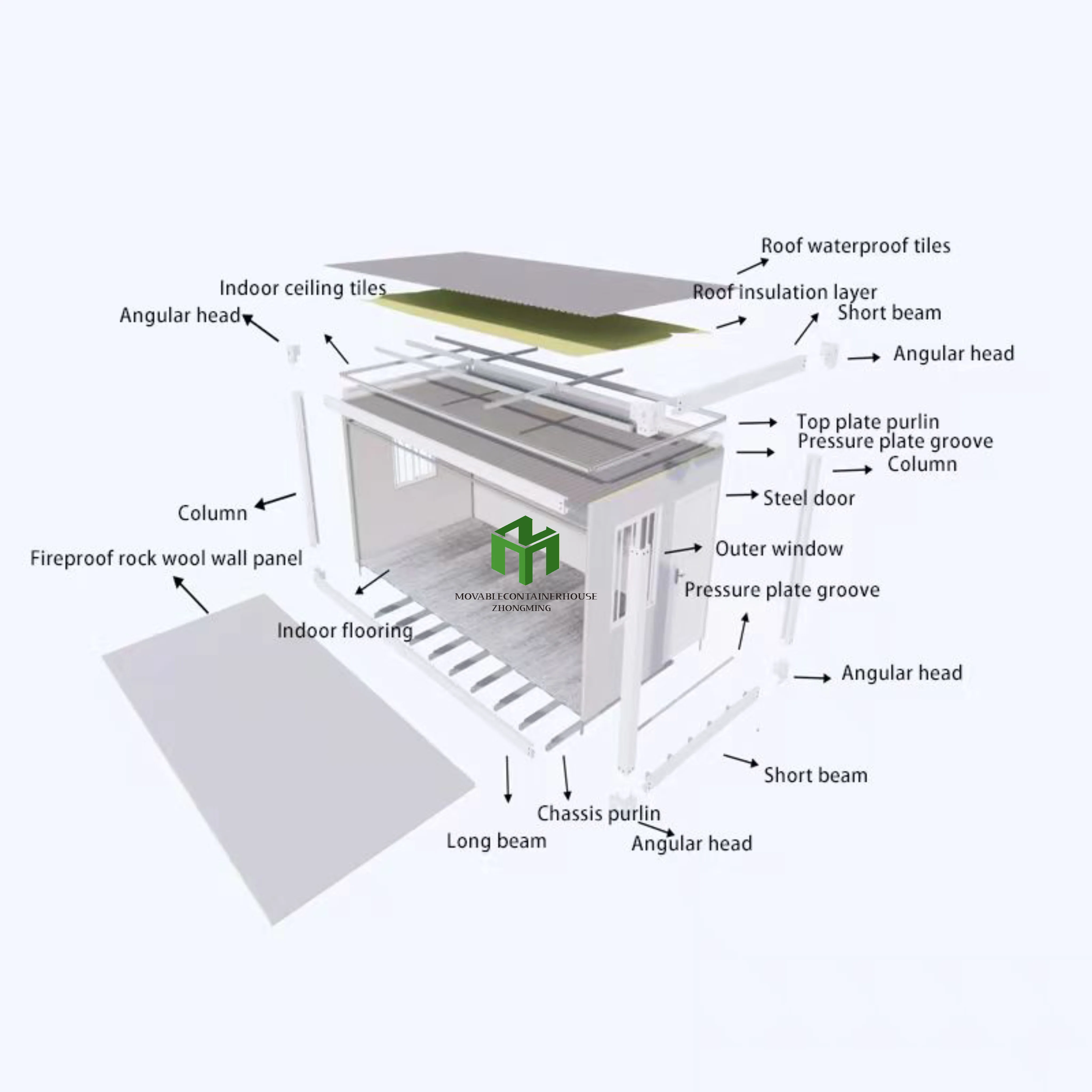

Component Name |
Material specifications |
|
Top Frame
|
Beam:
2 pcs of 5530*2.0
2 pcs of 2138*2.0
4 pcs of 210*150
Purlins 80*40*1.2
18 sqm of Glasswool18 sqm
Bake painted steel palted 0.45mm
|
|
Column |
4 pcs 2.0mm 210*150*2526 |
|
Bottom Accessories |
50 S sink |
|
Floor |
5 pcs of 18mm cement fiber board |
|
PVC floor |
1.6mm PVC floor |
|
Door |
steel door 970*1970 |
|
Window |
PVC single layer glass sliding window 930*1200*2 |
|
Wall Panel |
steel rockwool sandwich panel V950 0.3mm/50(50kg/m³) |
|
Pipe |
4 pcs of 50PVC 2750-4 |
|
Ceiling |
831 type ceiling |
|
Corner trimming |
4 pcs of corner trimming |
|
Accessories
|
1 set of bolts and glue
|
|
Skirting line |
||
Electronical system
|
1 pc of 3-hole socket ,3 pcs of 5-hole sockets, 1 switch distribution box, 1 industrial socket, wire, 36W strip light *2 (power distribution is done on the inner corner of the inner wall) |
|
